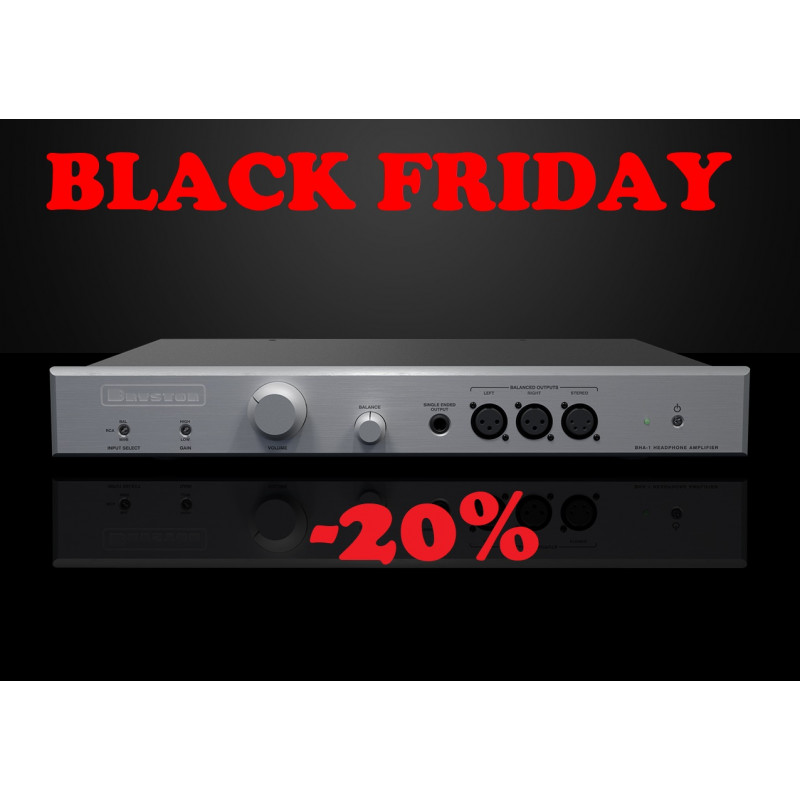

Bryston BHA-1 Headphone Amplifier

€2,364.17
€1,891.33 Save 20%
per piece

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston’s reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones.


Accessories for this and other products can be found in the category "Accessories".

Color
Dimension
Quantity
on stock

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston’s reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones.

Connections:

Inputs: Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.)

Outputs: Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼" Headphone Jack

Control: Remote Trigger Input ( 5 - 12V AC/DC @10mA)

Features:

·         Balanced outputs

·         Balanced dual mono circuitry

·         Left/Right balance control

·         Six fully discrete Class A Bryston operational amplifiers

·         14dB or 20dB gain

·         10k input impedance

·         High quality noble stereo volume control (laser trimmed)

·         Gold plated input and output connectors

·         Multiple headphone drive capability

Options:

·         Available with Silver or Black Faceplate (2U)

·         17” or 19” Faceplate available

·         Rack Mountable Ears available

·         Locking mechanisms on Balanced XLR connectors

Specifications:

·         2 Ohms output impedance for each op-amp driver

Load @ 600 Ohms

·         Hi - 10.9V Out @ 001% Power 200 mW

·         Lo - 5.45 V Out @ 001% Power 50 mW

·         Lo - 2.50 V Out @ 001% Power 10 mW

·         Lo - 788 mV Out @ 001%¹ Power 1 mW

Load @ 300 Ohms

·         Hi - 10.8 V Out @ 001% Power 390 mW

·         Lo - 5.40 V Out @ 001% Power 50 mW

·         Lo - 1.79 V Out @ 001% Power 10 mW

·         Lo - 583 mV Out @ 001%¹ Power 1 mW

Load @ 80 Ohms

·         Hi - 10.4 V Out @ 002% Power 1.35 W

·         Lo - 5.20 V Out @ 001% Power 383 mW

·         Lo - 887 mV Out @ 001% Power 10 mW

·         Lo - 345 mV Out @ 003% Power 1 mW

Load @ 32 Ohms

·         Hi - 9.65 V Out @ 0.150% Power 2.9 W²

·         Lo - 4.84 V Out @ 002% Power 732 mW

·         Lo - 578 mV Out @ 001%¹ Power 10 mW

·         Lo - 185 m V Out @ 005%¹ Power 1 mW

·         Lo - 4.00 V Out @ 001% Power 500 mW³



Dimensions / Weight:

·         69,8mm H x 430mm B x 406mm T (17”) oder 480mm B (19“)

·         3,6 kg
